DZ47Z-63 DC Miniature Circuit Breaker

Products details show

Scope of application

The DZ47Z series miniature circuit breaker is designed to protect DC circuits with a rated voltage of 750V and a rated current of 63A or less from overloads and short circuits in lines, lighting, and power equipment. Additionally, it can be utilized for occasional switching of lines and equipment in regular circumstances.

This product complies with the following standards: IEC60898-2 and GB/T14048.2.

Structure characteristics

The circuit breakers in this collection feature a plastic enclosure, overcurrent protection, operating mechanism, contact points, and arc suppression system. The casing is constructed from durable, fire-resistant plastic material. A multi-pole circuit breaker is created by combining individual single poles, with the protection mechanism linked by a connecting rod and the control handle linked by a covering, guaranteeing uniformity in the activation of each pole.

Working condition

◇ The upper limit of the surrounding air temperature shall not exceed+40 ℃, the lower limit shall not be lower than -5 ℃, and the 24-hour average value shall not exceed+35 ℃;

◇ Altitude: The altitude of the installation site shall not exceed 2000m;

◇ Atmospheric conditions: At+40 ℃, the relative temperature of the air does not exceed 50%, and higher relative humidity is allowed at lower temperatures;

◇ The average minimum temperature of the wettest month shall not exceed+25 ℃, and the average maximum relative humidity of that month shall not exceed 90%, taking into account condensation on the surface of the product caused by temperature changes;

◇ Pollution level: Level 2;

◇ Installation category: Class III;

◇ Installation type: TH35-7.5 type installation rail is used for installation;

◇ Installation conditions: The inclination angle between the installation surface and the vertical surface shall not exceed 5 °.

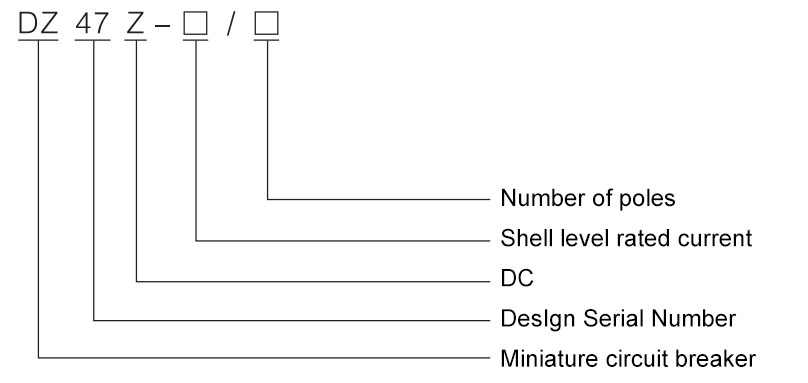

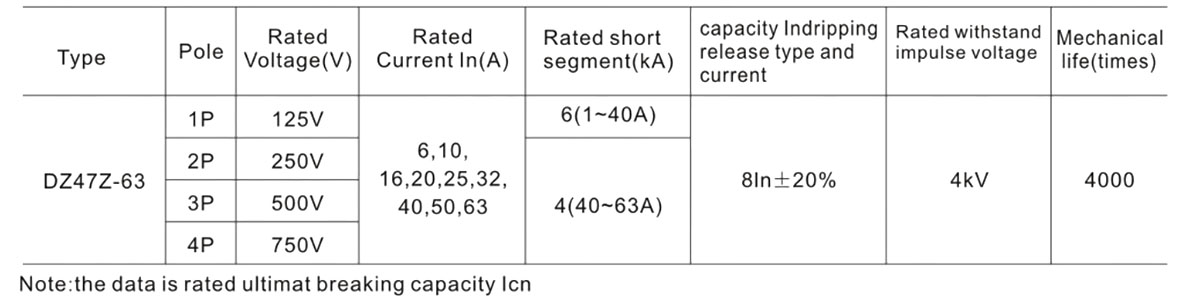

Specifications and parameters

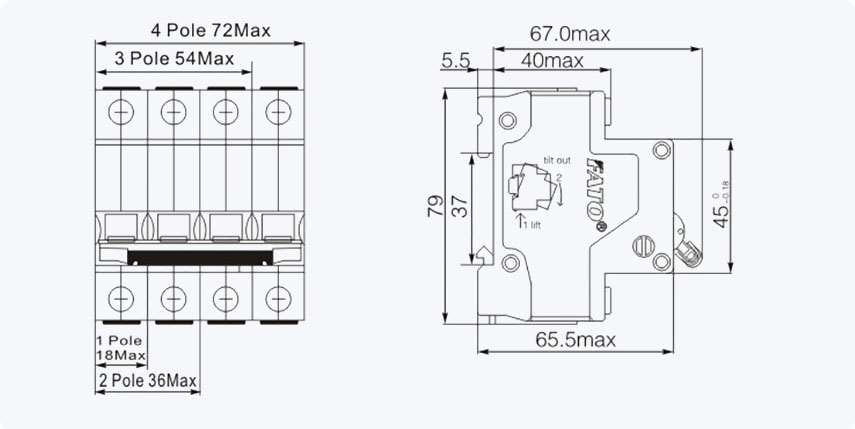

Appearance and dimensions

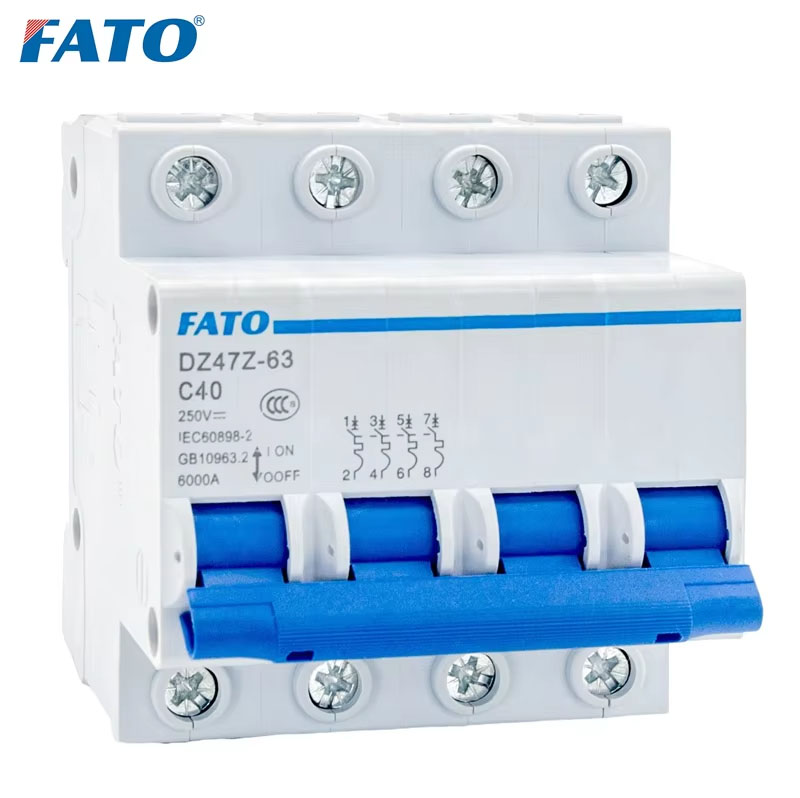

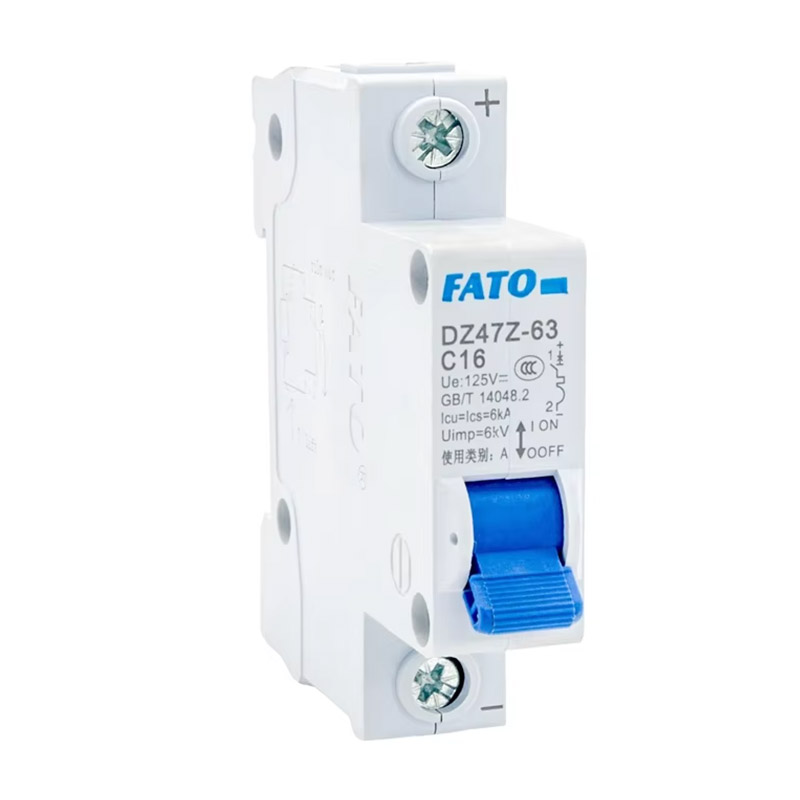

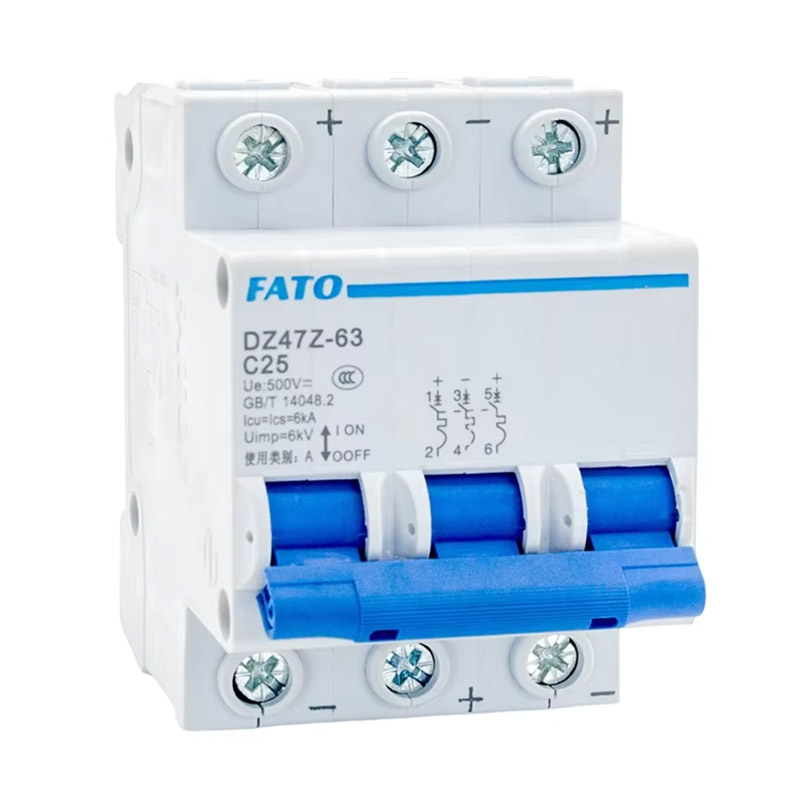

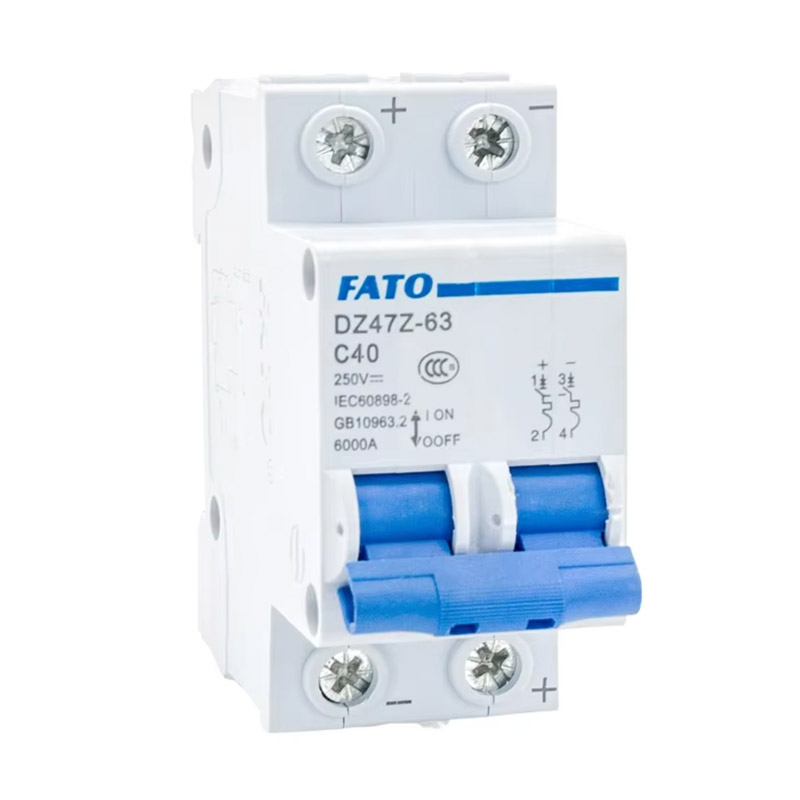

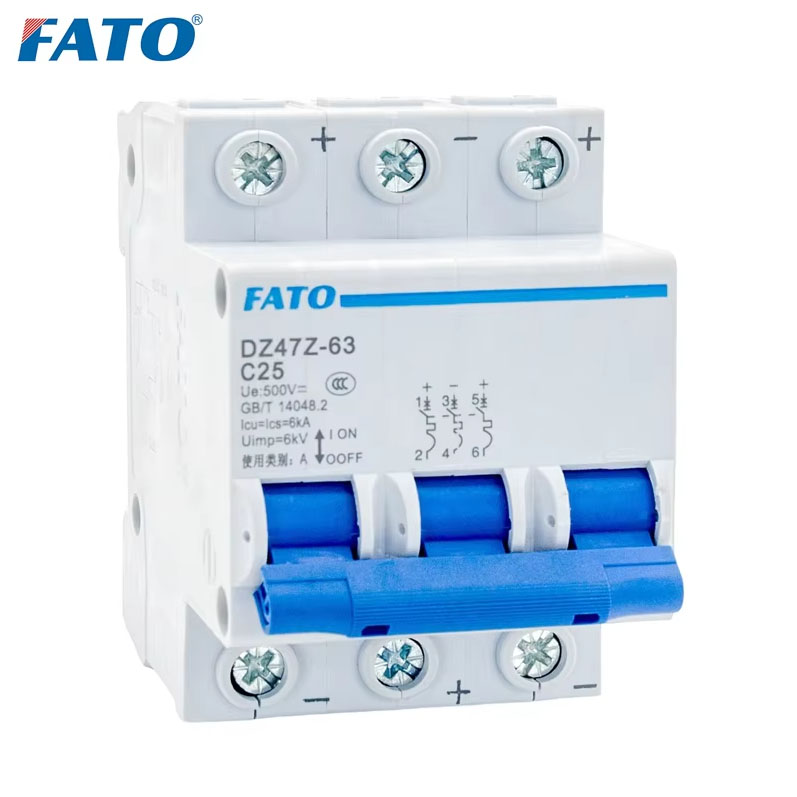

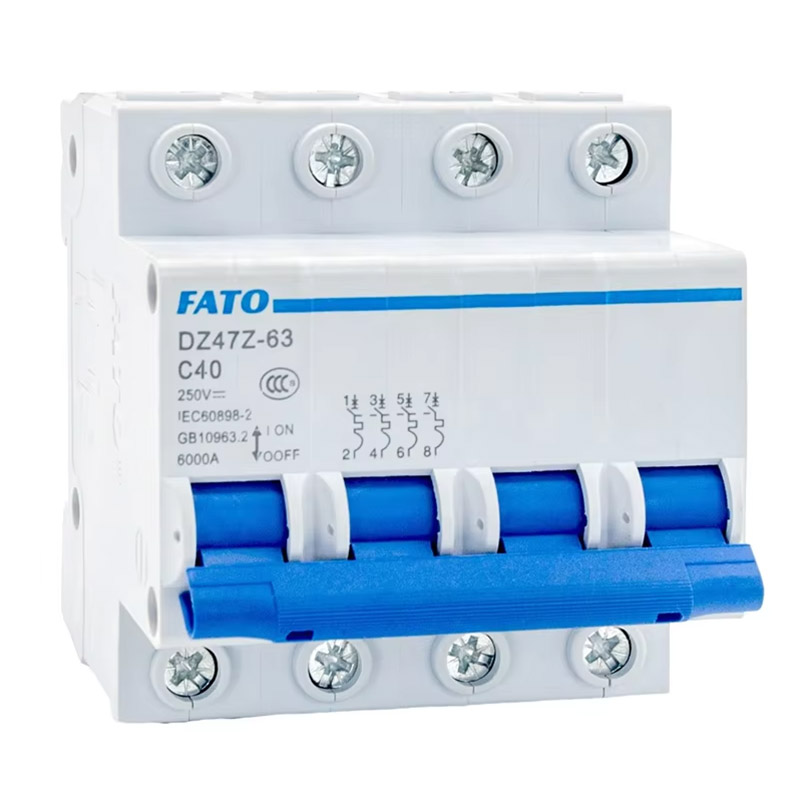

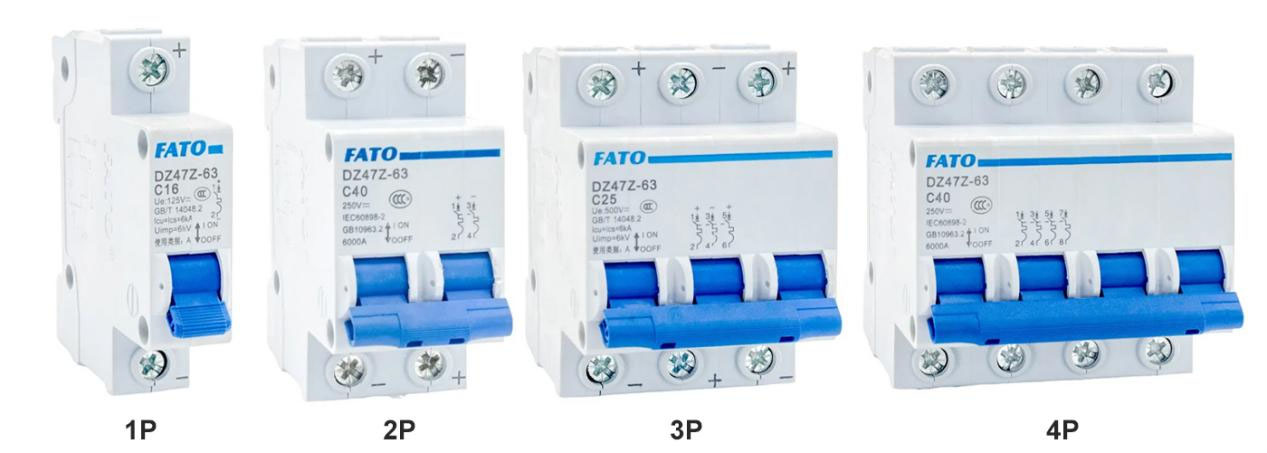

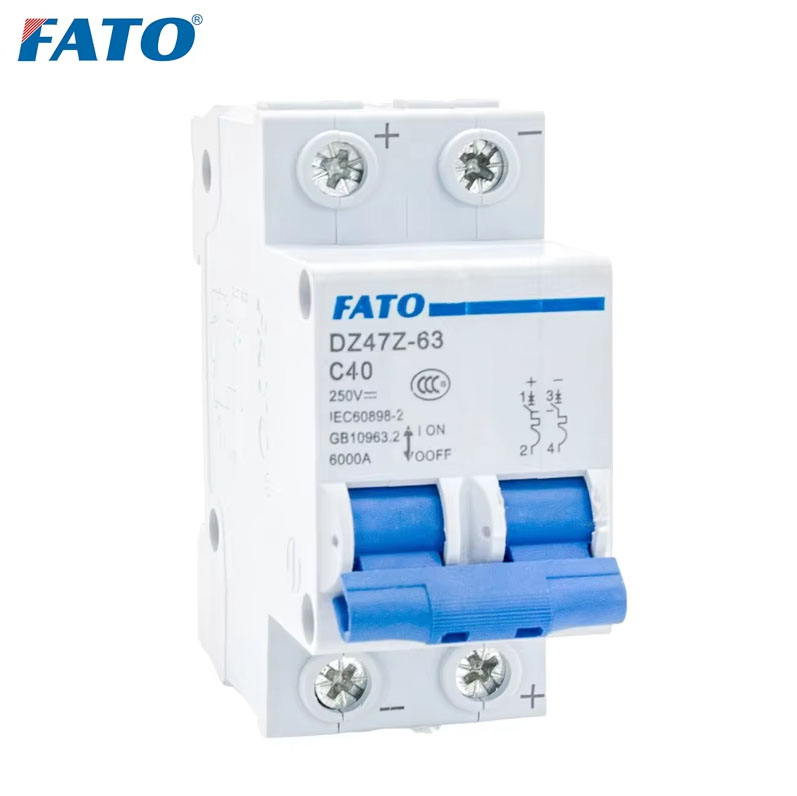

Product shows
