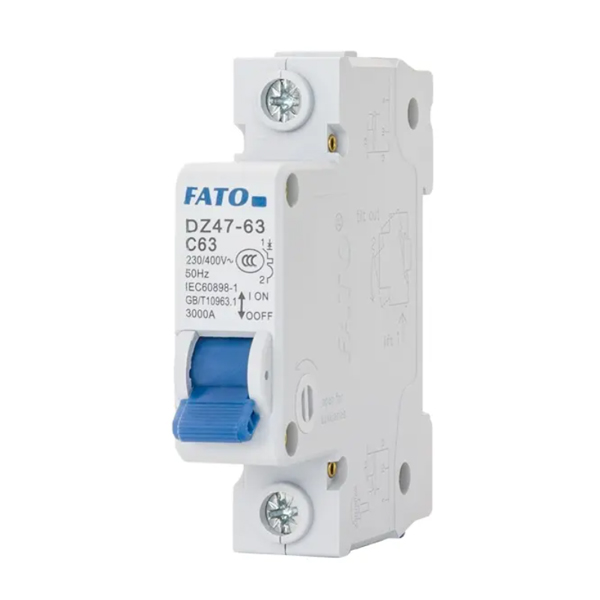

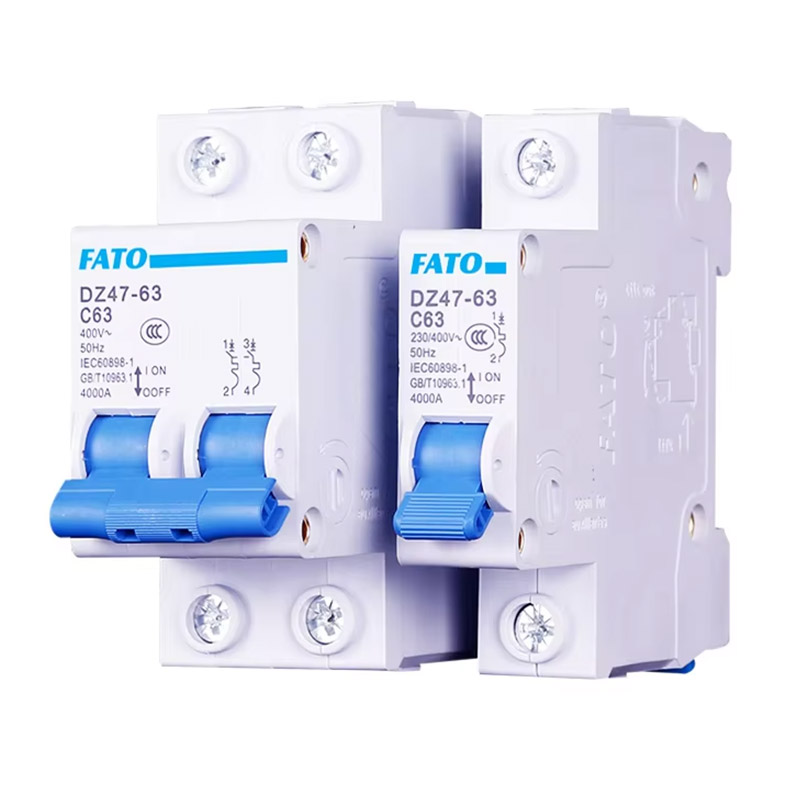

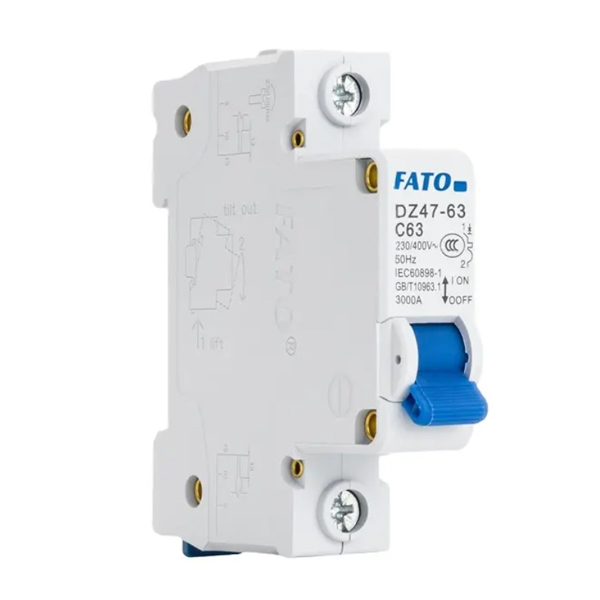

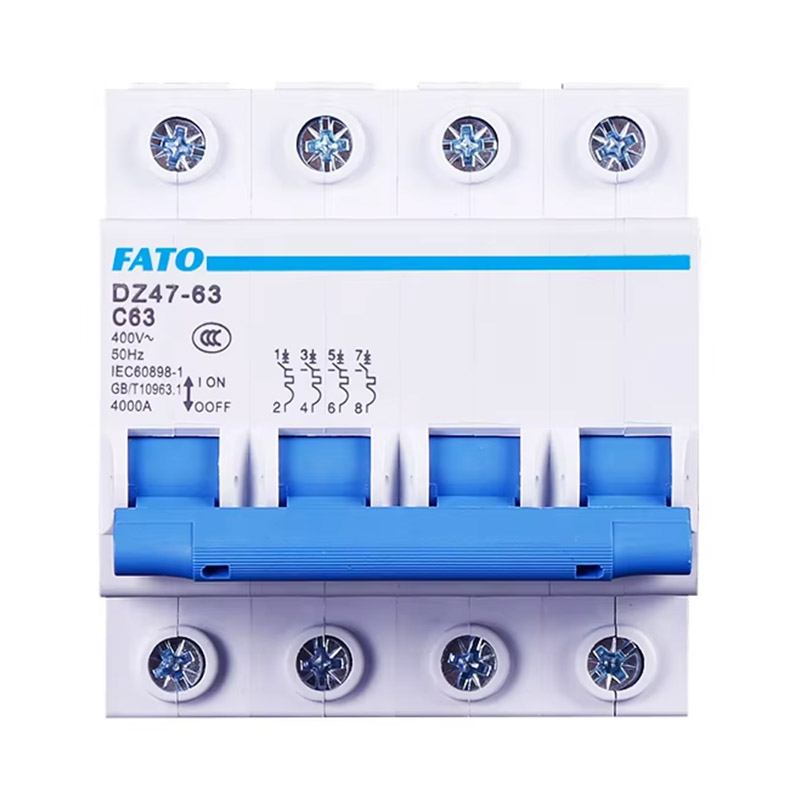

DZ47-63 MCB Miniature Circuit Breaker
The DZ47-63 series miniature circuit breaker is designed for use in lighting and motor distribution systems, protecting against overloads and short circuits. Its innovative design, lightweight construction, and dependable operation make it a high-performance solution.

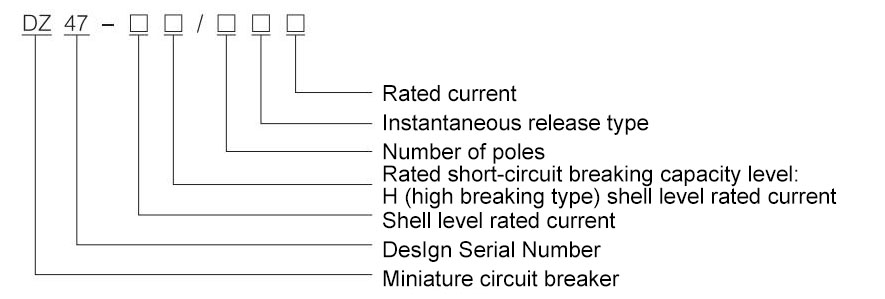

Model:DZ47-63
Send Inquiry
Product Description
Products details show
Scope of application
The DZ47 series new miniature circuit breaker is suitable for overload and short circuit protection of lines, lighting, and power equipment in circuits with AC 50Hz, rated voltage of 230/400V, and rated current up to 100A and below. It can also be used for infrequent switching of lines and equipment under normal conditions.
The product complies with IEC60898-1 and GB/T 0963.1 standards.
Structure characteristics
The miniature circuit breakers in this set are made up of plastic housing, overcurrent protection, operating mechanism, contacts, and arc extinguishing system. The housing is constructed from durable and flame-retardant plastic material. The multi-pole circuit breaker is created by combining several single poles, with the protection and handle connected through rods and covers to maintain uniformity in the operation of each pole.
Working condition
◇ The upper limit of the surrounding air temperature shall not exceed+40 ℃, the lower limit shall not be lower than -5 ℃, and the 24-hour average value shall not exceed+35 ℃;
◇ Altitude: The altitude of the installation site shall not exceed 2000m;
◇ Atmospheric conditions: At+40 ℃, the relative temperature of the air does not exceed 50%, and higher relative humidity is allowed at lower temperatures;
◇ The average minimum temperature of the wettest month shall not exceed+25 ℃, and the average maximum relative humidity of that month shall not exceed 90%, taking into account condensation on the surface of the product caused by temperature changes;
◇ Pollution level: Level 2;
◇ Installation category: Class III;
◇ Installation type: TH35-7.5 type installation rail is used for installation;
◇ Installation conditions: The inclination angle between the installation surface and the vertical surface shall not exceed 5 °.

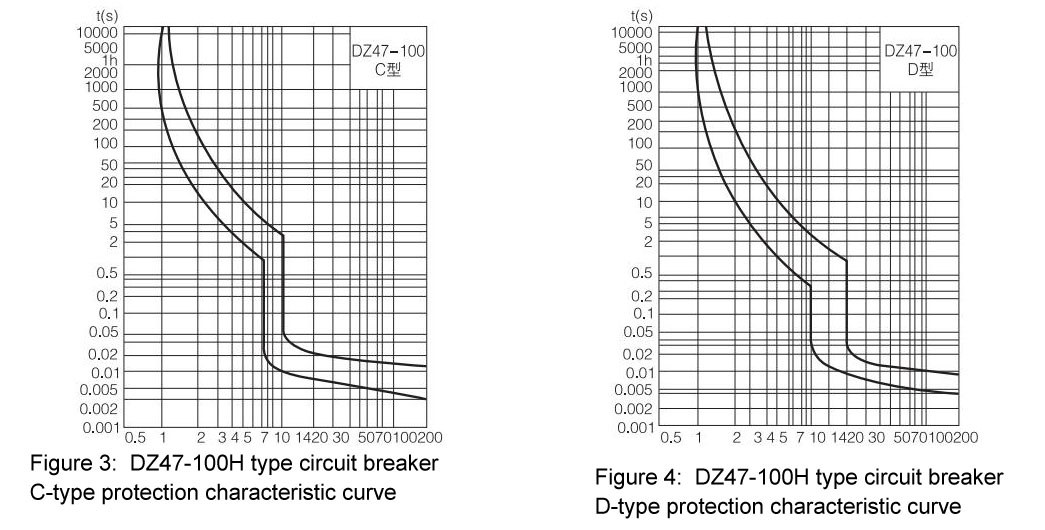

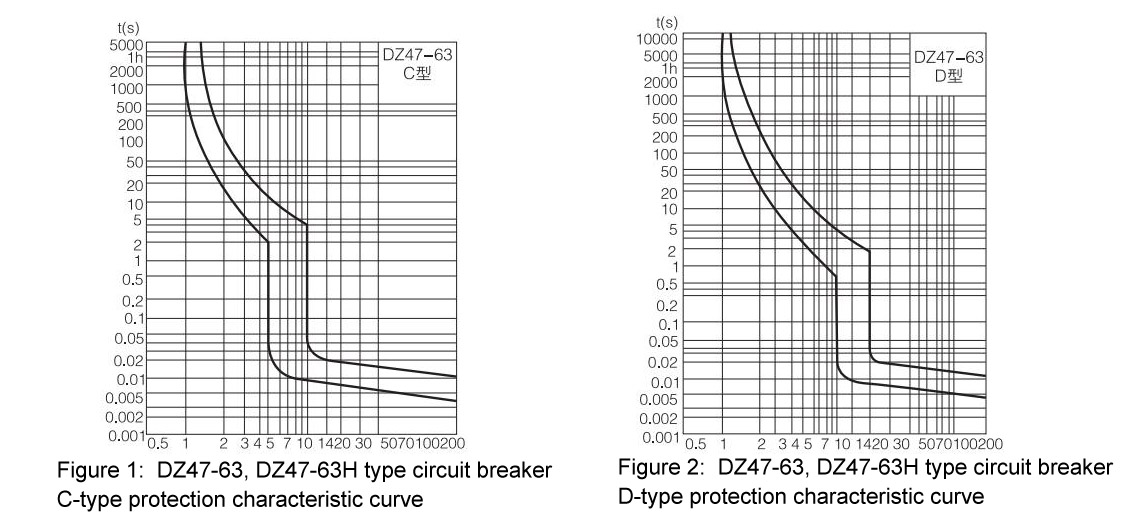

Specifications and parameters
|
Type |
RatedCurrent(A) |
PoleNo. |
Voltage(V) |
BreakingCapacity(A) |
|
B |
1,2,3,4,6,10,16,20,25,32,40A |
1 |
230/415 |
6000 |
|
2,3,4 |
400 |
|||
|
50,63A |
1 |
230/415 |
4500 |
|
|
2,3,4 |
400 |
|||
|
C |
1,2,3,4,6,10,16,20,25,32,40A |
1 |
230/415 |
6000 |
|
2,3,4 |
400 |
|||
|
50,63A |
1 |
230/415 |
4500 |
|
|
2,3,4 |
400 |
|||
|
D |
1,2,3,4,6,10,16,20,25,32,40A |
1 |
230/415 |
4500 |
|
2,3,4 |
400 |
|||
|
Weight(g) |
1P |
2P |
3P |
4P |
|
102 |
208 |
308 |
408 |

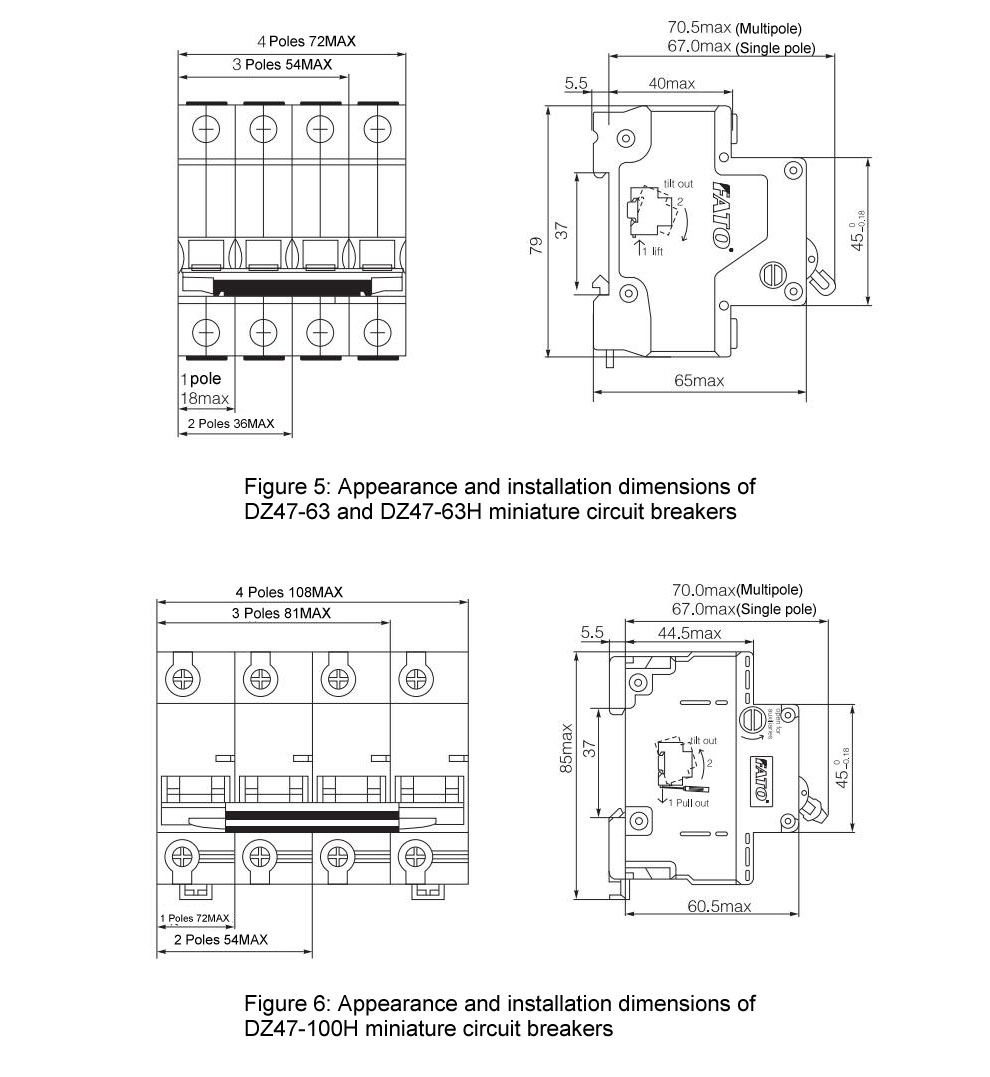

Appearance and dimensions

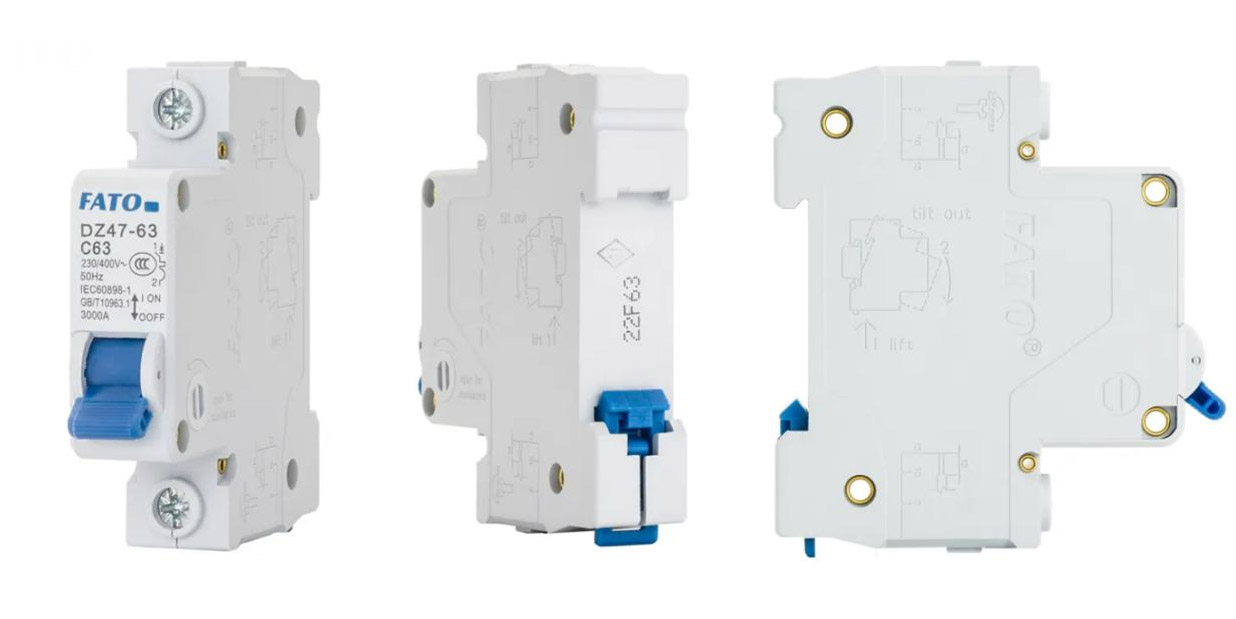

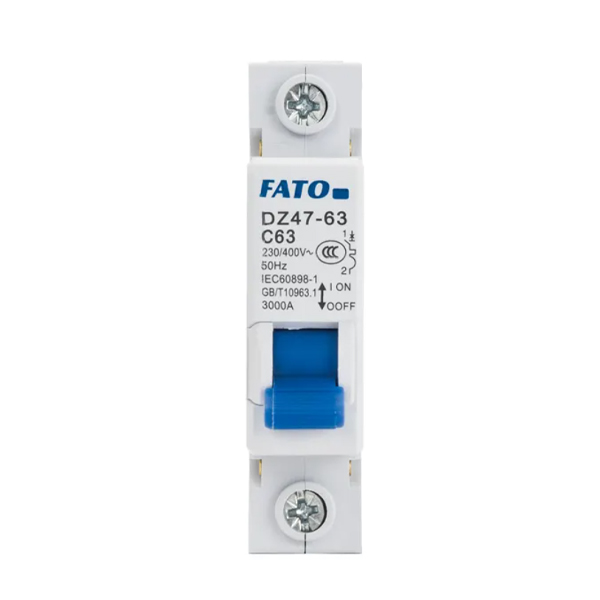

Product shows
