The 72.5KV 1600amp Outdoor SF6 high-voltage tank circuit breaker is a unique electrical switch used to disrupt high-voltage electric circuits when faults occur or for regular switching tasks. It relies on sulfur hexafluoride (SF6) gas enclosed in a sealed tank to extinguish arcs and provide insulation. This particular circuit breaker is specially designed for outdoor placement in electrical substations and power distribution systems.

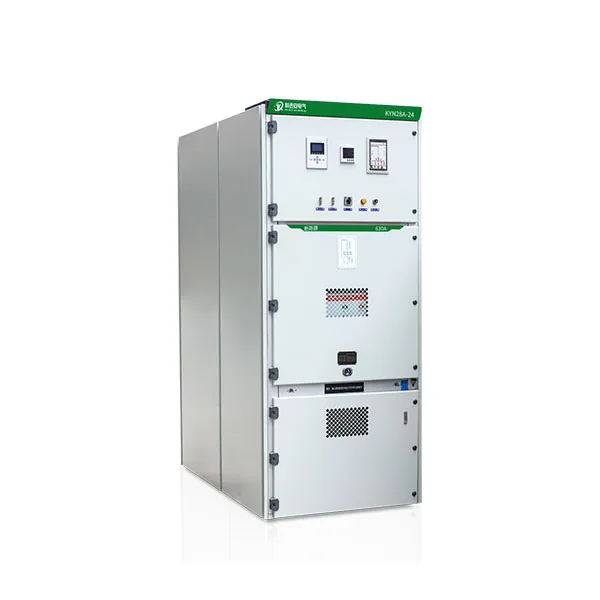

The KYN28-12(Z) 3.6KV 1600A MV medium voltage electrica lswitchgear is designed for 12kV rated voltage and 50Hz rated frequency in three-phase AC power systems. It is utilized for receiving and dispersing electric power, as well as managing, safeguarding, and overseeing circuits.

The 12KV 1250AMP Vertical break two post isolating switch is specifically designed for use in 10(12,15,24)KV high voltage transmission and distribution lines. These switches serve the purpose of disconnecting and connecting single-phase or three-phase circuits without load and voltage. They are particularly engineered for single-phase application within a three-phase circuit system and are characterized by a simple and cost-effective design, ensuring ease of operation and maintenance. The switches are available in a range of rated current options, including 200400,600,630,800, and 1000,1250 amperes, providing the flexibility to select the most suitable option based on specific requirements. They are comprised of a base, pillar insulator, conductive part, and mechanism part.

The advancement of society, economy, and technology has led to increased complexity in engineering construction. There is a growing demand for compact, low-maintenance, and intelligent switch products. Both domestic and foreign switch manufacturers are actively developing 12KV 1600A Medium Voltage Gas Insulated Electrical Switchgear (C-GIS), also known as gas-insulated switchgear. Gas-insulated switchgear refers to the encapsulation of high-voltage components, such as busbars, circuit breakers, isolating switches, and power cables, within a shell that maintains a lower gas pressure.

The XGW-12 series Primary and secondary Fusion ring main unit (switching station) is a company that adopts advanced foreign technology and is based on various regional distribution networks in China. The development and production of inflatable outdoor ring main unit based on the characteristics and actual situation of urban distribution network cable transformation. The XGW-12 series Primary and secondary Fusion ring main unit (switch station) adopts HTN-12 environmentally friendly gas ring main unit switchgear. This switchgear has the advantages of modularity, scalability, full insulation, full sealing, safety and reliability, maintenance-free operation, wireless temperature measurement, online monitoring devices, etc. It is suitable for any harsh environment and is widely used in industrial parks, residential areas, streets, airports, various buildings, bustling commercial centers, and other places.

Low voltage Intelligent power quality hybrid compensation cabinet (after combining the complete set of devices) is installed in the cabinet, equipped with incoming circuit breakers and fast melting. Capacitor capacity can be any combination of 5kvar-60kvar; APF or SVG modules with capacities of 50A (35kvar), 100A (70kvar), and 100kvar are optional. Rear ventilation design with ventilation overcurrent mesh holes.
