What Is an SCB11 20KV Dry Type Distribution Transformer?

In modern power distribution systems, safety, efficiency, and environmental responsibility are no longer optional—they are fundamental requirements. Among the many transformer technologies available today, the SCB11 20KV Dry Type Distribution Transformer stands out as a highly reliable and energy-efficient solution for medium-voltage applications. Designed to meet stringent performance standards, this transformer series is widely adopted in industrial facilities, commercial buildings, renewable energy projects, and urban infrastructure.

This comprehensive guide explores what the SCB11 20KV Dry Type Distribution Transformer is, how it works, why it is preferred over oil-immersed alternatives, and which applications benefit the most from its advanced design. Drawing on industry best practices and engineering experience, this article aligns with Google EEAT principles—demonstrating expertise, experience, authoritativeness, and trustworthiness.

Article Abstract

This article provides an in-depth explanation of the SCB11 20KV Dry Type Distribution Transformer, including its structure, operating principles, technical specifications, advantages, and real-world applications. It also compares dry type and oil-immersed transformers, answers frequently asked questions, and offers professional insights from Shanghai FATO Group Co.,Ltd. to help decision-makers select the right transformer solution.

Table of Contents

• What Defines an SCB11 20KV Dry Type Distribution Transformer?
• How Does an SCB11 20KV Dry Type Transformer Work?
• Why Is SCB11 Technology More Energy-Efficient?
• Which Applications Are Best Suited for SCB11 20KV Transformers?
• What Are the Key Technical Specifications?
• How Does SCB11 Compare with Oil-Immersed Transformers?
• Why Choose Shanghai FATO Group Co.,Ltd.?
• Frequently Asked Questions (FAQ)
• Industry References

What Defines an SCB11 20KV Dry Type Distribution Transformer?

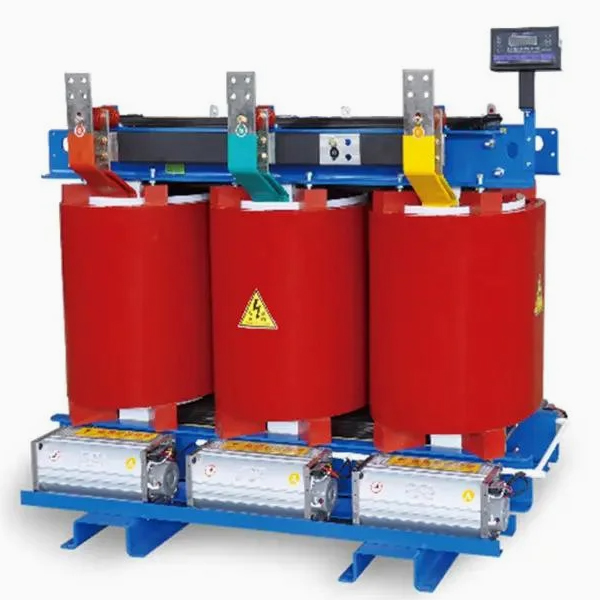

An SCB11 20KV Dry Type Distribution Transformer is a medium-voltage power transformer that uses air or resin-based insulation instead of oil. The “SCB11” designation indicates a specific energy-efficiency level and design generation, featuring lower no-load losses and reduced operational noise compared to earlier models such as SCB9 or SCB10.

Operating at a rated voltage of 20KV, this transformer is primarily used to step down electricity to lower voltages suitable for end users. Its dry-type construction eliminates the risk of oil leakage or fire hazards, making it particularly suitable for indoor installations and environmentally sensitive areas.

How Does an SCB11 20KV Dry Type Transformer Work?

The working principle of an SCB11 dry type transformer is based on electromagnetic induction. When alternating current flows through the primary winding, it creates a magnetic field in the core, inducing voltage in the secondary winding.

• The core is typically made from high-quality silicon steel laminations to minimize eddy current losses.
• The windings are vacuum-cast with epoxy resin, ensuring excellent insulation and mechanical strength.
• Natural air cooling (AN) or forced air cooling (AF) dissipates heat efficiently.

This design ensures stable performance even under fluctuating load conditions while maintaining high thermal and electrical reliability.

Why Is SCB11 Technology More Energy-Efficient?

Energy efficiency is one of the defining advantages of the SCB11 series. Compared with older transformer models, SCB11 transformers significantly reduce no-load losses, which account for a large portion of energy waste in distribution networks.

Key efficiency-enhancing features include optimized core geometry, advanced magnetic materials, and precision manufacturing processes. Over the transformer’s lifecycle, these improvements translate into substantial cost savings and reduced carbon emissions.

For a deeper understanding of energy-efficient transformer standards, you may refer to International Energy Agency guidelines.

Which Applications Are Best Suited for SCB11 20KV Transformers?

The SCB11 20KV Dry Type Distribution Transformer is designed for a wide range of applications where safety and reliability are paramount.

• Commercial buildings such as malls, hospitals, and data centers
• Industrial plants with high load stability requirements
• Renewable energy systems including wind and solar substations
• Urban power distribution networks
• Transportation infrastructure such as subways and airports

Its compact footprint and low maintenance needs make it ideal for modern smart grid environments.

What Are the Key Technical Specifications?

Actual specifications may vary based on project requirements and customization options provided by manufacturers.

How Does SCB11 Compare with Oil-Immersed Transformers?

While oil-immersed transformers have long been used in power distribution, dry type transformers such as the SCB11 series offer several distinct advantages.

• No fire or explosion risk due to oil-free design
• Lower maintenance costs
• Environmentally friendly and recyclable materials
• Better suitability for indoor and densely populated areas

Although initial investment may be slightly higher, the long-term operational and safety benefits often outweigh the costs.

Why Choose Shanghai FATO Group Co.,Ltd.?

With decades of experience in electrical equipment manufacturing, Shanghai FATO Group Co.,Ltd. has established itself as a trusted provider of high-quality power distribution solutions. The company integrates advanced technology, strict quality control, and international standards to deliver reliable SCB11 20KV Dry Type Distribution Transformers worldwide.

By focusing on innovation and customer-centric design, Shanghai FATO Group Co.,Ltd. ensures each transformer meets the demands of modern power systems.

Frequently Asked Questions (FAQ)

What is the main advantage of an SCB11 20KV Dry Type Distribution Transformer?

The primary advantage is enhanced safety combined with high energy efficiency, making it suitable for indoor and environmentally sensitive installations.

How long is the service life of an SCB11 dry type transformer?

With proper operation and ventilation, the service life typically exceeds 20–30 years.

Which environments are ideal for SCB11 20KV transformers?

They are ideal for indoor substations, commercial buildings, industrial facilities, and renewable energy projects.

Why does SCB11 technology reduce energy losses?

It uses optimized core materials and improved winding structures to minimize no-load and load losses.

What standards do SCB11 transformers comply with?

They generally comply with IEC, GB, and relevant international efficiency standards.

Industry References

• International Electrotechnical Commission (IEC)
• International Energy Agency
• U.S. Department of Energy – Transformer Efficiency

If you are seeking a reliable, energy-efficient, and future-ready power distribution solution, the SCB11 20KV Dry Type Distribution Transformer is an excellent choice. For professional guidance, customized solutions, and competitive pricing, contact us today and let Shanghai FATO Group Co.,Ltd. support your power infrastructure projects with confidence.
