HXGN-12 switchgear Modular AC metal enclosed Ring main unit RMU is a high-voltage AC complete set designed for a three-phase AC ring network, terminal distribution network, and industrial electrical equipment. It is suitable for power distribution and protection and can be installed in substations. It complies with national standards GB3906 and IEC60298, as well as DL/T402 and DL/T404 standards, and meets the requirements of "five-proof" blocking.

11KV 33KV VCB Vacuum Circuit Breaker designed for three-phase AC 50Hz applications with a rated voltage of 12kV. Suitable for indoor use in various industrial and mining settings, power plants, and substations, it offers reliable control and protection for electrical equipment. Its robust designless installation, either in a switch cabinet or on a handcart, and ensures consistent performance, making it a worthwhile investment for your operations.

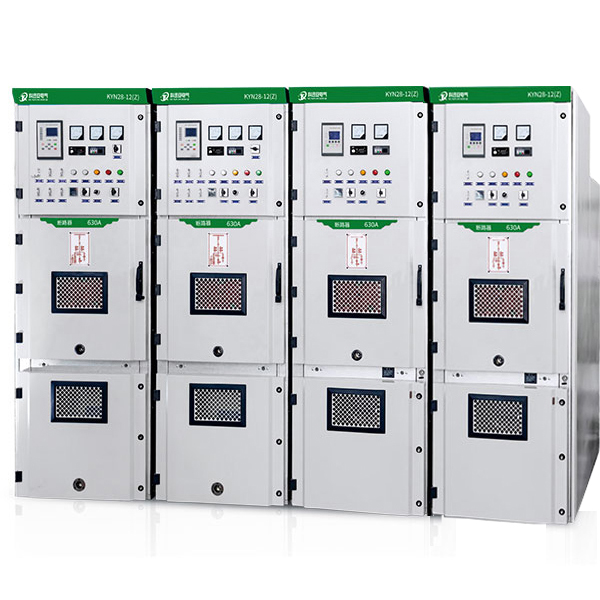

The KYN28-12(Z) AC metal armored switchgear 11KV 630A Medium Voltage Indoor Electrical Switchgear is designed for three-phase AC power systems with a rated voltage of 12kV and a rated frequency of 50Hz. It serves as a reliable and efficient solution for receiving, distributing, controlling, protecting, and monitoring electrical energy in various applications.

The 35kV 35KV PV Pad mounted Transformer is a combination transformer used for wind or photovoltaic power generation, which integrates a step-up transformer, high-voltage current limiting fuse, load switch, low-voltage switchgear, and corresponding auxiliary equipment. The capacity range is 500-6800KVA, and the voltage level is 35kV and below. It is suitable for various types of onshore, pond, and offshore photovoltaic and wind power plants.

This circuit breaker is a multifunctional low-voltage protection device designed for distribution systems with AC 50Hz, rated voltage below 400V, and rated current below 63A. It is suitable for industrial, commercial, and civilian power networks. Its core functions integrate security protection, equipment protection, and intelligent monitoring, which can significantly improve the reliability and operation efficiency of the distribution system. Core functional highlights: 1. Safety protection 1) Personal safety assurance: Through high-precision residual current detection technology (RCD), indirect contact protection is provided, effectively reducing the risk of electric shock. 2) Equipment and line protection: Integrated overload and short circuit dual protection mechanism, accurately cutting off fault current, avoiding electrical fires and equipment damage. 2. Intelligent monitoring and early warning 1) Leakage pre-alarm function: Real-time monitoring of residual current in the circuit. When abnormal leakage (such as insulation degradation) is detected, an alarm signal is output through a passive normally open contact (dry contact). It can be linked to SCADA, fire protection system or sound and light alarm device without an external power supply to achieve early warning of faults and ensure power supply continuity. 2) Flexible threshold configuration: supports custom setting of leakage alarm values, adapting to sensitivity requirements of different scenarios (such as 30mA/100mA adjustable). 3. Diversified control ability Line and motor control: suitable for occasional switching operations of distribution lines or intermittent start-stop control of small motors, meeting the requirements of nonfrequent operation scenarios. Typical application scenarios: 1) Key power supply areas: places with high requirements for power continuity, such as data centers and hospital IT systems, have alarm nontrip mechanisms to avoid accidental power outages. 2) Equipment protection: Front-end protection for devices such as frequency converters and outdoor electrical cabinets that are susceptible to electrical leakage or environmental impact. 3) Intelligent operation and maintenance: By connecting to the building management system (BMS) through touch signals, remote monitoring and preventive maintenance can be achieved. Product advantages: 1) High reliability: thermal magnetic double trip structure, balancing overload delay protection and short-circuit instantaneous action characteristics. 2) Flexible expansion: an optional communication module, supporting remote status monitoring and fault diagnosis. 3) Easy installation: Standardized modular design, compatible with mainstream rail installation, suitable for compact distribution boxes. Summary: This circuit breaker is designed with the concept of "warning first, safety oriented", which ensures the safety of personnel and equipment while maximizing the stability of system operation. It is the preferred protective device for modern intelligent distribution systems.

This product 12KV vacuum circuit breaker with Isolation and Grounding offers numerous benefits, including simplicity of installation, reduced maintenance needs, a reassuringly extended lifespan, compact design, affordability, and reliability. The product complies with the technical standards of GB1984-89 and GB/T1984-2003 for AC high-voltage circuit breakers. Key specifications include a main circuit capacity of 630A-20KA and 25KA, with a mechanical lifespan of 10,000 operations. The grounding circuit can withstand 20KA, with a mechanical lifespan of 10,000 operations for the circuit breaker and 3,000 operations for isolation and grounding.
