China Outdoor industrial disconnect Manufacturer, Supplier, Factory

The XGW-12 series Primary and secondary Fusion ring main unit (switching station) is a company that adopts advanced foreign technology and is based on various regional distribution networks in China. The development and production of inflatable outdoor ring main unit based on the characteristics and actual situation of urban distribution network cable transformation. The XGW-12 series Primary and secondary Fusion ring main unit (switch station) adopts HTN-12 environmentally friendly gas ring main unit switchgear. This switchgear has the advantages of modularity, scalability, full insulation, full sealing, safety and reliability, maintenance-free operation, wireless temperature measurement, online monitoring devices, etc. It is suitable for any harsh environment and is widely used in industrial parks, residential areas, streets, airports, various buildings, bustling commercial centers, and other places.

In recent years, the engineering construction landscape has evolved in response to societal, economic, and technological advancements. There is an increasing demand for compact, intelligent, and low-maintenance switch equipment. Domestic and international manufacturers are actively developing 40.5KV 3150A Medium Voltage Gis Gas Insulated Switchgear (C-GIS), which enclose high-voltage components like busbars, circuit breakers, isolating switches, and power cables within a pressure-reduced shell.

The ZW7-36 series 40.5KV 1250A Outdoor high-voltage vacuum circuit breaker is a three-phase, 50Hz AC outdoor switchgear designed for 36 KV power distribution and transmission systems, capable of controlling load currents, overloads, short circuits, and other electrical currents by safely switching them on or off.

This circuit breaker is a multifunctional low-voltage protection device designed for distribution systems with AC 50Hz, rated voltage below 400V, and rated current below 63A. It is suitable for industrial, commercial, and civilian power networks. Its core functions integrate security protection, equipment protection, and intelligent monitoring, which can significantly improve the reliability and operation efficiency of the distribution system. Core functional highlights: 1. Safety protection 1) Personal safety assurance: Through high-precision residual current detection technology (RCD), indirect contact protection is provided, effectively reducing the risk of electric shock. 2) Equipment and line protection: Integrated overload and short circuit dual protection mechanism, accurately cutting off fault current, avoiding electrical fires and equipment damage. 2. Intelligent monitoring and early warning 1) Leakage pre-alarm function: Real-time monitoring of residual current in the circuit. When abnormal leakage (such as insulation degradation) is detected, an alarm signal is output through a passive normally open contact (dry contact). It can be linked to SCADA, fire protection system or sound and light alarm device without an external power supply to achieve early warning of faults and ensure power supply continuity. 2) Flexible threshold configuration: supports custom setting of leakage alarm values, adapting to sensitivity requirements of different scenarios (such as 30mA/100mA adjustable). 3. Diversified control ability Line and motor control: suitable for occasional switching operations of distribution lines or intermittent start-stop control of small motors, meeting the requirements of nonfrequent operation scenarios. Typical application scenarios: 1) Key power supply areas: places with high requirements for power continuity, such as data centers and hospital IT systems, have alarm nontrip mechanisms to avoid accidental power outages. 2) Equipment protection: Front-end protection for devices such as frequency converters and outdoor electrical cabinets that are susceptible to electrical leakage or environmental impact. 3) Intelligent operation and maintenance: By connecting to the building management system (BMS) through touch signals, remote monitoring and preventive maintenance can be achieved. Product advantages: 1) High reliability: thermal magnetic double trip structure, balancing overload delay protection and short-circuit instantaneous action characteristics. 2) Flexible expansion: an optional communication module, supporting remote status monitoring and fault diagnosis. 3) Easy installation: Standardized modular design, compatible with mainstream rail installation, suitable for compact distribution boxes. Summary: This circuit breaker is designed with the concept of "warning first, safety oriented", which ensures the safety of personnel and equipment while maximizing the stability of system operation. It is the preferred protective device for modern intelligent distribution systems.

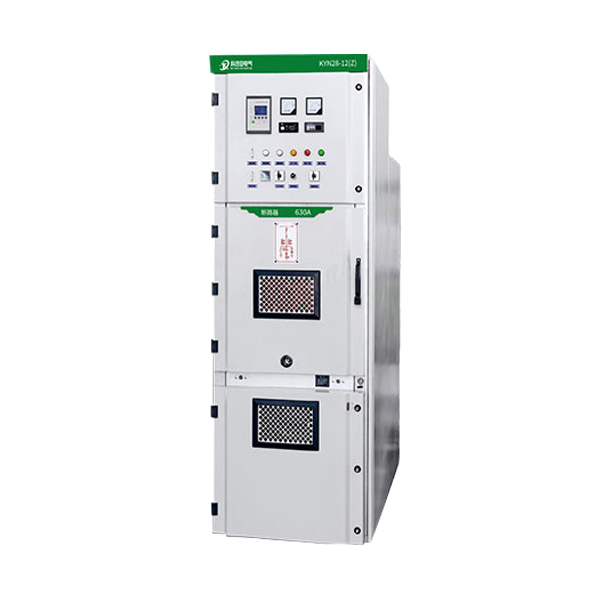

The KYN28-12(Z) AC metal armored switchgear 7.2KV 630A Customized Electrical Switchgear is designed for use in three-phase AC power systems with a rated voltage of 12kV and a rated frequency of 50Hz. It is ideal for receiving and distributing electric energy, as well as controlling, protecting, and monitoring circuits.

The advancement of society, economy, and technology has led to the escalating intricacy of engineering construction in recent years. This has resulted in a growing demand for compact, maintenance-free, and intelligent switch products. Domestic and foreign switch manufacturers are actively developing 12KV 630A MV Gas Insulated Power Distribution Switchgear (C-GIS), also known as gas-insulated switchgear. Gas-insulated switchgear is a type of equipment that encloses high-voltage components like busbars, circuit breakers, isolating switches, and power cables within a shell, which maintains a lower gas pressure.
